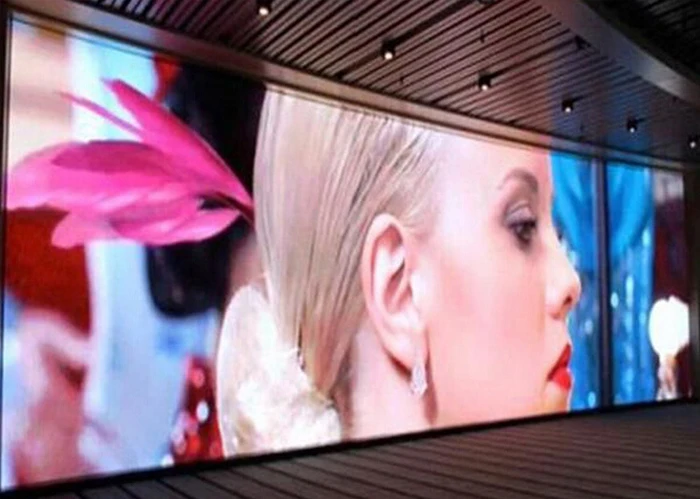

Outdoor p3 led wall display

P3 led wall display specification

  • Module Waterproof
    Protection level IP65, doesn’t need an edge, born for outdoor fixed installation, save the cost of the steel structure.
  • Fast Front-Maintenance
    Insert the front maintenance hole with tools; rotate it gently and counter-clockwise to open; removed the module gently.
  • The Maintenance of Power Box
    Open the lock with the key to open the power cabinet; gently open the power supply cover.
  • Front Service
    Fully front maintenance is available.
ModelP3
Pixel pitch (mm)3
Pixel Density (Dot/㎡)111111
Module size (WxH)mm192×192
Module resolution64×64
Cabinet Size (WxH)mm640×480/576×576
Cabinet materialDie casting aluminum or iron
Viewing AngleH: 140°  V: 140°
Brightness(adjustable )1000~1200nits
Grey Scale (bits)16bits
Refresh Rate (Hz)1920–3840
Input VoltageAC110–240V
Input Power Frequency (Hz)50/60 Hz
Working Temperature(℃)-20~50
Life Time (hrs)100000

For more information about the outdoor P3 led wall, please feel free to visit our page or contact us.
